Disposable Cartridge Pen Injector
Cinvige Disposable Cartridge Pen Injector is a single-use, user-friendly, adjustable-dose pen designed for daily subcutaneous administration of peptide therapeutics such as insulin, GLP-1,and growth hormone, as well as antibody-based medicines. With clear dose display and reliable injection feedback, it enables patients to achieve precise and safe self-administration with ease.
Registration and Certification
Authoritative filing · Global registration
- China CDE filing and registration: B20210000066
- International registration: Registered and certified in 8 countries within the four major regions of Europe, the Middle East, South America and Southeast Asia.
Product Specifications
| Cartridge Specifications | 1.5ml | 3ml | 1.5ml | 3ml | 1.5ml | 3ml |
|---|---|---|---|---|---|---|
| Single min. dose (ml) | 0.0033ml | 0.0067ml | 0.005ml | 0.01ml | 0.005ml | 0.01ml |
| Single max. dose (ml) | 0.2667ml | 0.5333ml | 0.3ml | 0.6ml | 0.4ml | 0.8ml |
| Method of administration | Multiple doses, extension | Multiple doses, extension | Multiple doses, extension | Multiple doses, extension | Multiple doses, extension | Multiple doses, extension/internal rotation |
| Injection feedback | Visual + auditory cues | |||||
| Adaptor needle | Injection Pen Needle in compliance with ISO11608-2 standard | |||||
Product Advantages
- Safe Materials: All components are made of medical-grade polymers, with excellent biocompatibility.
- Clear Display: Large-font dose indication ensures easy reading, even for users with impaired vision.
- Intelligent Dose Memory: The set dose cannot exceed the remaining medication volume, eliminating the risk of overdose.
- Bidirectional Adjustment: The dose setting mechanism is adjustable in both directions. An overset dose can be corrected downward.
- Portable Design: Lightweight and compact, for effortless portability.
- Full-Chain Quality Control: In compliance with the ISO 13485 system, the entire process from design to production is independently controlled.
- High-end Manufacturing: Utilizing imported automated equipment from Switzerland and high-precision molds to ensure product consistency.
- Professional Support: Offer full-process technical services including final equipment development and process validation.

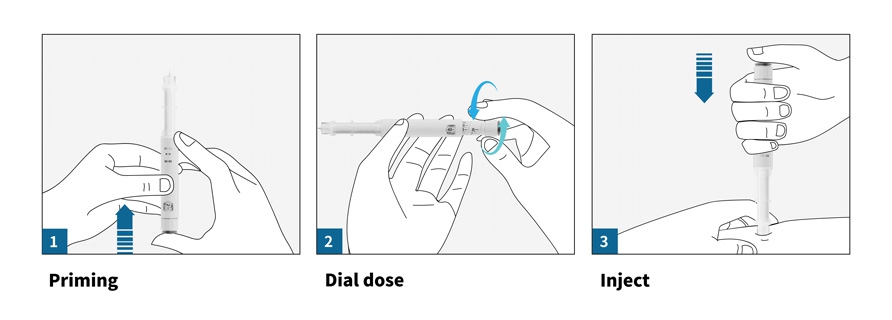

How to Use
Customized Service
We offer flexible and diverse customized solutions to help you create differentiated products.

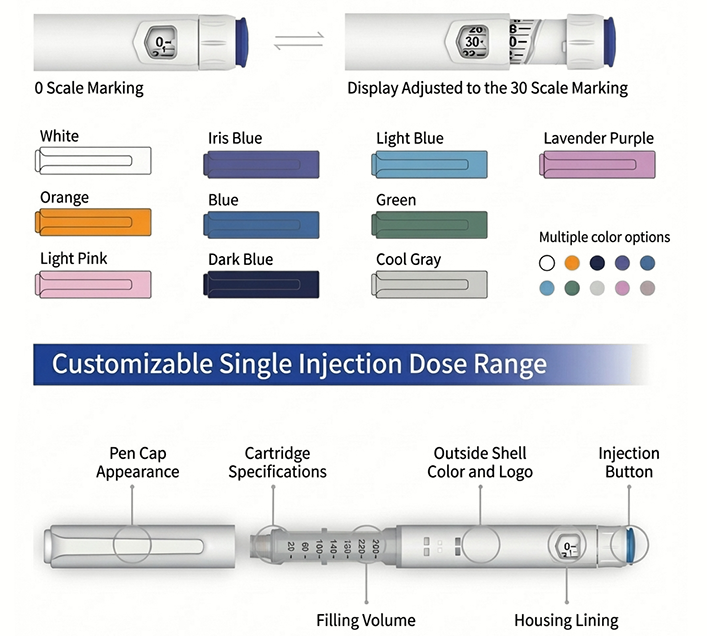

- Appearance Customization: Customization of the appearance of injection button, dose window, dose selector, pen body, cartridge and pen cap.
- Specification Compatibility: Other specifications and injection volume ranges can be customized.
- Technical Collaboration: Covering process validation, equipment development and assembly process optimization.
- Platform-based Development: Rapid customization based on mature platforms, shortening time to market and controlling project risks.

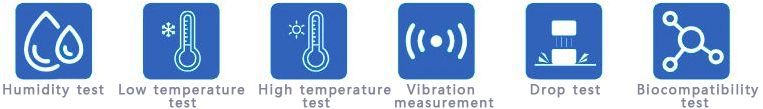

Quality Guarantee
- Strictly implement the requirements of the ISO13485 quality management system
- Strict factory inspection standards
- Provide comprehensive after-sales support and technical services
Drug Compatibility
Compatible with mainstream drug categories on the market, it has strong adaptability and wide coverage.
Insulin & Analogues
- Insulin aspart
- Insulin lispro
- Insulin glargine
- Insulin detemir
- Insulin degludec
GLP-1 (for weight loss / blood sugar reduction)
- Liraglutide
- Semaglutide
Reproductive & Growth hormones
- Follicle-stimulating hormone
- Growth hormone
Antibody-mediated disease medication
- Human Interleukin-2 injection
